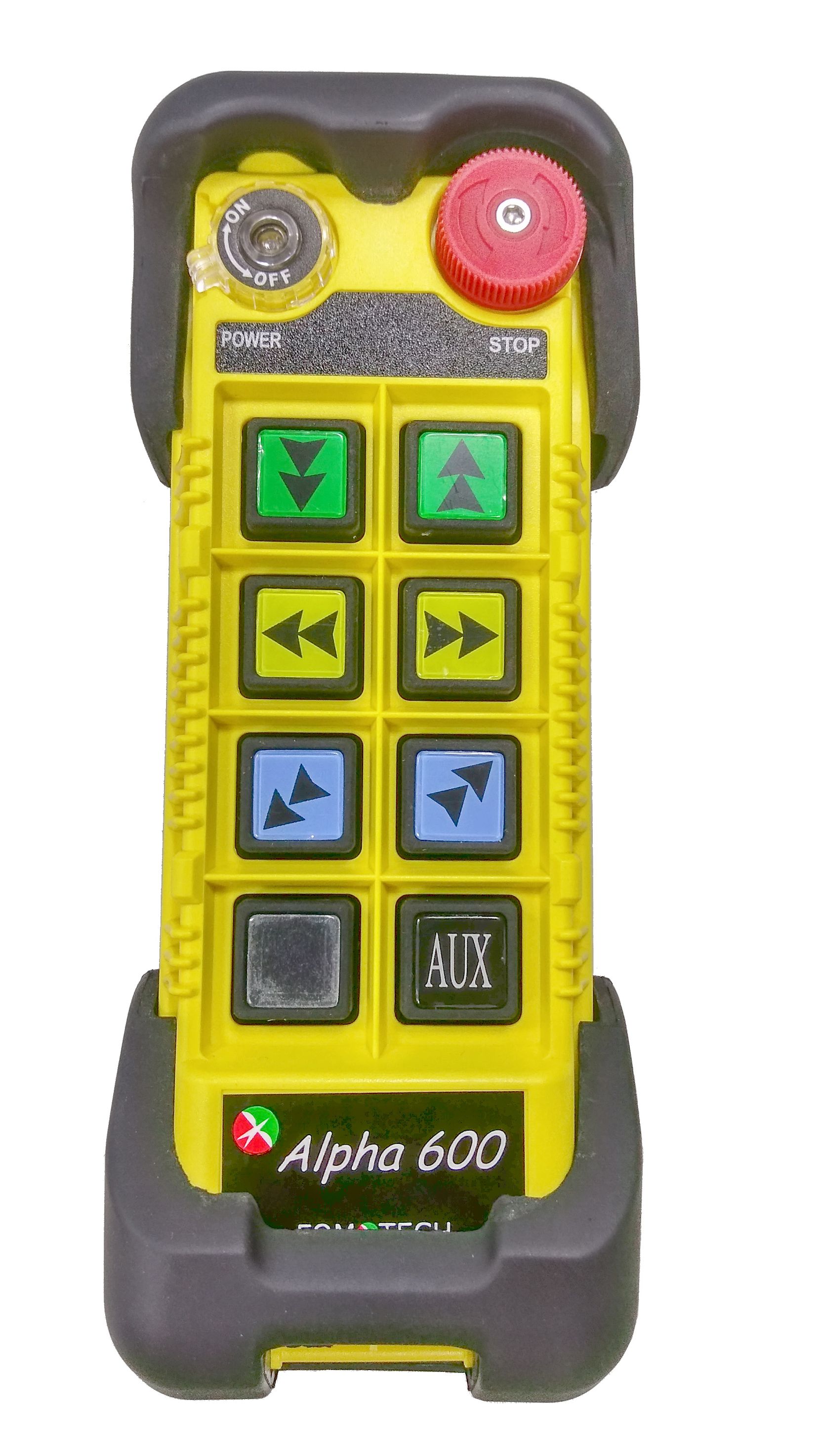

Transmitter
|
|
|
Frequency Range
|
: |
301, 433 MHz |
|
Transmitting Range
|
: |
100 meters |
|
Hamming Distance
|
: |
6 |
|
Channel Spacing
|
: |
25KHz |
|
Frequency Control
|
: |
VTCXO (PLL) |
|
Frequency Drift
|
: |
< 3ppm @ -10℃ ~ +70℃ |
|
Frequency Deviation
|
: |
< 1ppm @ 25℃ |
|
Spurious Emission
|
: |
- 50dB |
|
Transmitting Power
|
: |
0.1mW - 10mW |
|
Emission
|
: |
F1D |
|
Antenna Impedance
|
: |
50 ohms |
|
Enclosure Rating
|
: |
IP65 |
|
Source Voltage
|
: |
Ni-MH AA size x 2 batteries 2.4V (no contact charging)
or AA size alkaline x 2 batteries 3.0V |
|
Operating Temperature
|
: |
-10℃ ~ +60℃ (>80℃ high temperature protection) |
|
Transmitting power consumption
|
: |
≦20mA@3V (Various from encoding mode and transmitting power) |
|
Dimension
|
: |
189mm × 68mm × 30mm |
|
Operating time
|
: |
>consecutive 100hrs @batteries full(2000mAh)
band 433MHz, transmitting power 1mW |
|
Weight
|
: |
280g (include batteries) |
|
Low voltage
|
: |
2.2V – 2.0V |
|
|
|
Receiver
|
|
|
Frequency Range
|
: |
301, 433 MHz |
|
Channel Spacing
|
: |
25KHz |
|
Hamming Distance
|
: |
6 |
|
Frequency Control
|
: |
VTCXO (PLL) |
|
Frequency Drift
|
: |
< 5ppm @ -20℃ ~ +70℃ |
|
Frequency Deviation
|
: |
< 1ppm @ 25℃ |
|
Sensitivity
|
: |
-115dBm |
|
Antenna Impedance
|
: |
50ohms |
|
Data Decoder Reference
|
: |
Quartz Crystals |
|
Responding Time
|
: |
40ms (Normal) |
|
Enclosure Rating
|
: |
IP65 |
|
Source Voltage
|
: |
DC12V-24V, AC48V, AC110V, AC220V, AC230V, AC240, AC380V
Full voltage module: AC100-240V @50/60Hz |
|
Power Consumption
|
: |
10W |
|
Operating Temperature
|
: |
-10℃ ~ +70℃ |
|
Output Contact Rating
|
: |
250V @ 5A |
|
Dimension
|
: |
310mm × 134mm × 72mm |
|
Weight
|
: |
2,022g (include output cable) |
|
